12 Volt Dump Trailer Hydraulic Pump Guide

by

A 12 volt hydraulic pump for dump trailer is one of the most common electric hydraulic power units on the market. It gives your trailer the power to lift and dump gravel, mulch, firewood, manure, soil, debris, and other heavy materials without needing a PTO or engine-driven hydraulic system.

The same idea applies to a 12 volt hydraulic pump for dump truck. These pumps are compact, battery-powered, and designed to raise a dump bed using hydraulic pressure. But choosing the wrong pump can lead to slow lifting, overheating, wiring problems, or a bed that will not raise under load.

How a 12 Volt Dump Trailer Hydraulic Pump Works?

A 12 volt dump trailer hydraulic pump uses a 12V DC motor to drive a hydraulic pump. The pump pushes hydraulic fluid from the reservoir into a cylinder. As the cylinder extends, it raises the dump bed.

Most dump trailers use a single acting hydraulic cylinder. That means the pump raises the bed, and gravity lowers it. Some heavier or more controlled systems may use a double acting setup.

Basic system parts include:

Single Acting or Double Acting for Dump Trailers?

Many dump trailers use a single acting 12 volt hydraulic pump. This setup is simple: pressure raises the bed, and gravity brings it down when the valve opens.

See also  Corn Head Grease vs 00 Grease: Which One Should You Use?

A 12 volt double acting hydraulic pump may be needed if the system must power the cylinder both ways. This can be useful where gravity return is not enough or where controlled down pressure is required.

If you are replacing an existing pump, match the old system. Do not buy a double acting unit if your cylinder and hose setup are made for single acting operation unless you are redesigning the system.

12 Volt Hydraulic Pump for Dump Truck

A 12 volt hydraulic pump for dump truck works on the same basic principle, but the loads may be heavier. Small dump trucks, landscape trucks, and utility dump bodies may use electric-over-hydraulic pumps instead of PTO-driven systems.

Before buying, check:

  • dump body weight

  • cylinder bore and stroke

  • required PSI

  • reservoir capacity

  • battery and alternator condition

  • cable size

  • duty cycle

  • mounting space

A weak battery or undersized wiring can make even a good pump perform poorly.

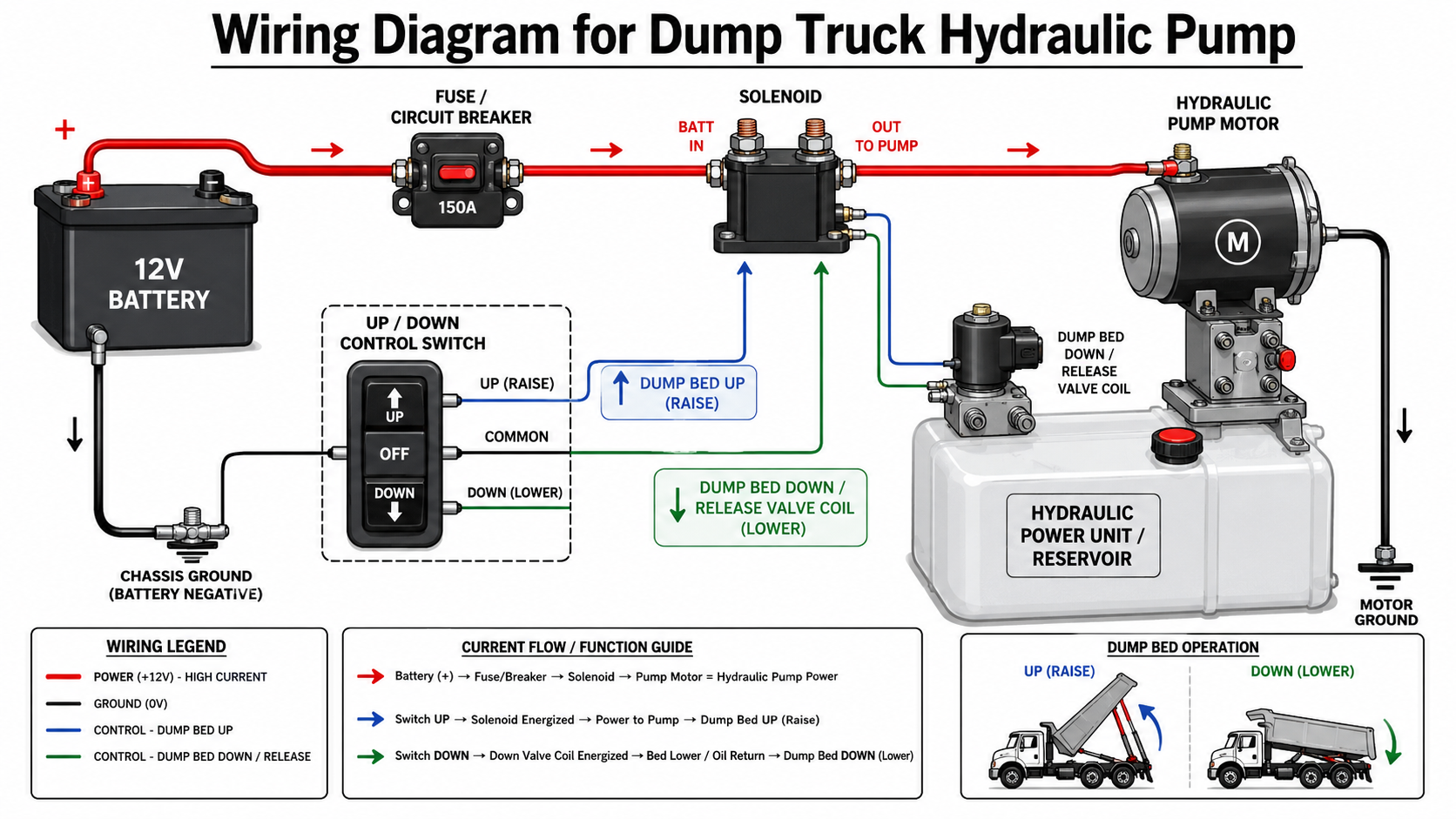

Wiring Diagram for Dump Truck Hydraulic Pump

Searches like dump truck 12 volt hydraulic pump wiring diagram are common because wiring is one of the biggest failure points. A pump motor can draw a lot of amperage, especially under load.

A basic wiring setup usually includes:

  • battery positive to solenoid

  • solenoid to pump motor

  • pump motor ground to battery negative or clean frame ground

  • control switch to solenoid terminals

  • fuse or breaker where required

If the motor clicks but does not run, the problem may be a weak battery, bad ground, damaged solenoid, corroded cable, or failed motor.

Reservoir Size for Dump Applications

A 12 volt hydraulic pump with reservoir must have enough fluid capacity to extend the cylinder fully. If the reservoir is too small, the bed may stop before reaching full dump angle.

See also  John Deere Corn Head Grease Part Number, Price, SDS, and Specs

As a general rule, larger cylinders need larger reservoirs. Always check the cylinder volume and compare it with the pump reservoir capacity before buying.

Common Problems with Dump Trailer Pumps

A 12 volt hydraulic pump for dump trailer may fail or act weak for several reasons:

  • low battery voltage

  • poor ground connection

  • bad solenoid

  • low hydraulic fluid

  • air in the system

  • clogged filter or screen

  • worn pump

  • overloaded dump bed

  • damaged control switch

  • undersized power cables

Many “bad pump” problems are actually wiring or battery problems.

Should You Buy a Cheap Pump?

Budget pumps can work for occasional use, especially on light-duty dump trailers. But for daily work, heavy loads, or commercial use, a better-quality pump is usually worth it.

Look for:

  • proper PSI rating

  • adequate GPM

  • strong motor

  • correct valve type

  • enough reservoir capacity

  • replacement parts availability

  • good reviews from dump trailer users

A pump that is too small may lift slowly, overheat, or fail early.

A 12 volt hydraulic pump for dump trailer or dump truck should be matched to the cylinder, load, reservoir requirement, and wiring system. Do not buy based only on price. Make sure the pump has enough pressure, flow, and fluid capacity for your dump bed.

For most dump trailers, a single acting unit works well. For heavier or more controlled systems, a double acting setup may be needed. Either way, strong wiring and a good battery are just as important as the pump itself.
